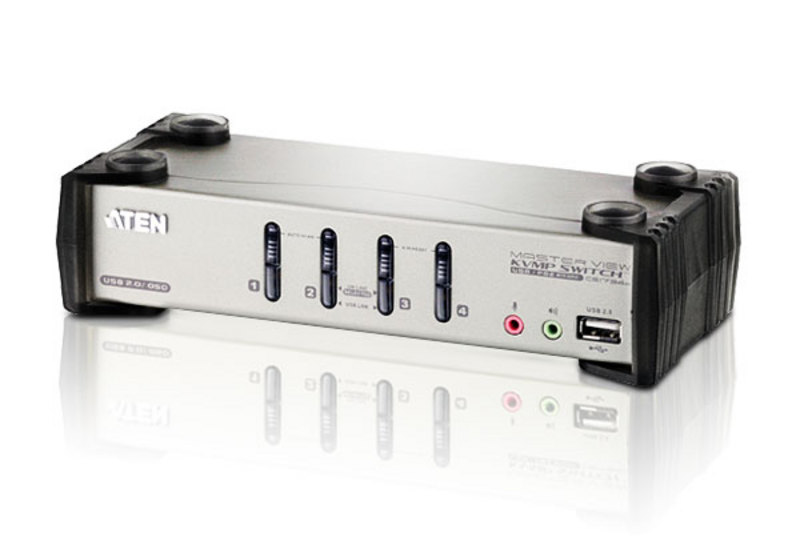

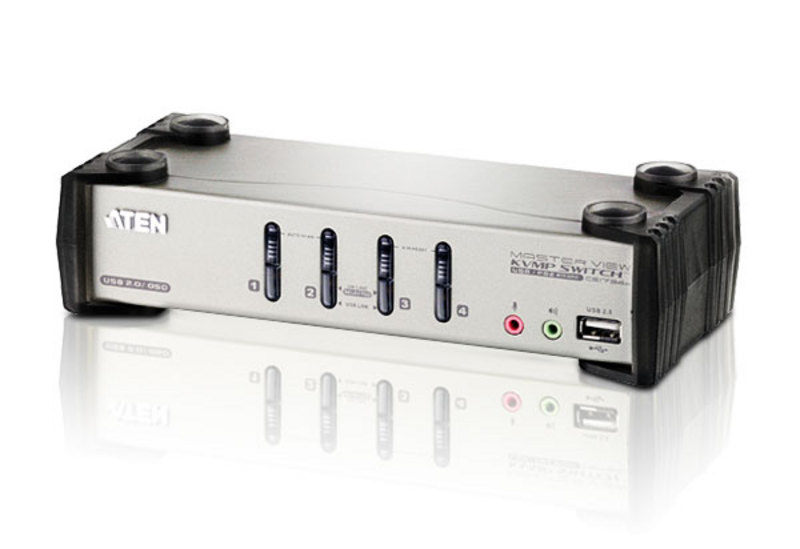

ATEN 4 PORT USB 2.0 VGA KVMP SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: CS1734B-AT-U
- MPN: CS1734B-AT-U
ATEN CS1734B-AT-U KVM switch Black, Metallic
ATEN CS1734B-AT-U, 2048 x 1536 pixels, QXGA, 1.02 W, Black, Metallic
Click or hover over image to enlarge
Power source
DC
Input voltage
5 V
Power consumption (typical)
1.02 W
Product colour
Black, Metallic
Housing material
Metal
Push button
Yes
Hot keys
Yes
Built-in display
No
Comsys Pacific Price
Save $23.25 off RRP
Available to Order
4 payments of $79.35Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 68 Plunket Avenue, Papatoetoe, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 4 PORT USB 2.0 VGA KVMP SWITCH
1x CS1734B 4-Port USB 2.0 KVMP™ Switch
2x 2L-5301U USB KVM Cables (1.2m)
2x 2L-5302U USB KVM Cables (1.8m)
2x OSD/Hotkey Stickers
1x LIN5-04A2-J13G Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Key features
- Number of computers controlled: 4
- Keyboard port type: USB, PS/2
- Mouse port type: USB, PS/2
- Video port type: VGA
- VGA (D-Sub) ports quantity: 1
- Console ports: 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
- Console USB ports quantity: 2
- USB hub: Yes
- USB 2.0 Type-A hub ports quantity: 2
- Audio connections: Yes
- Headphone outputs: 6
- Number of microphone inputs: 6
- HD type: QXGA
- Maximum resolution: 2048 x 1536 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,255 s
- DDC2B support: Yes
- Firmware upgradeable: Yes
- Product colour: Black, Metallic
- Housing material: Metal
- Push button: Yes
- Hot keys: Yes
- Built-in display: No
- On Screen Display (OSD): Yes
- Power source: DC
- Input voltage: 5 V
- Power consumption (typical): 1.02 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
+ 9 more — see the Specifications tab.
Ex GST
$275.99
