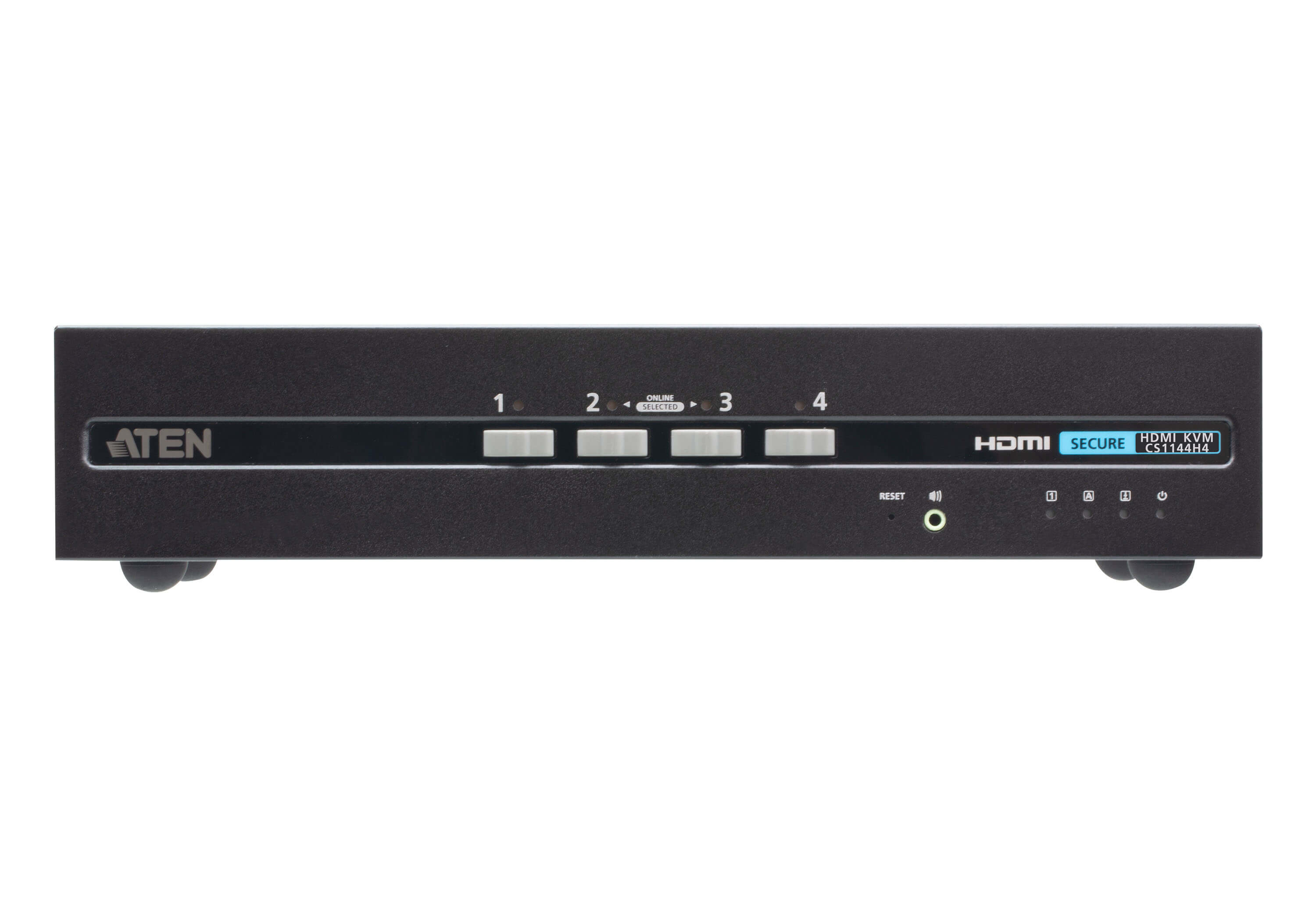

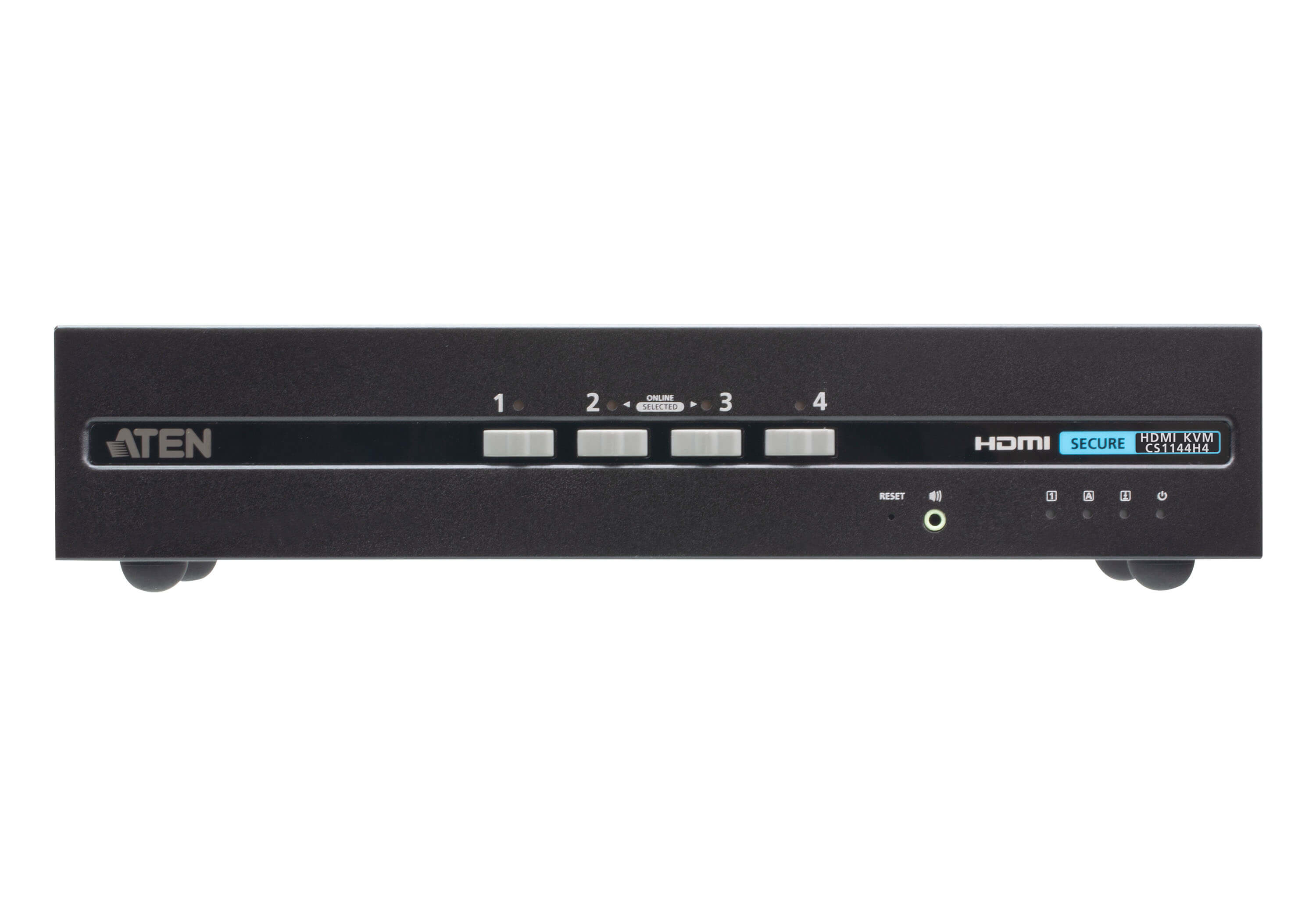

ATEN 4-Port USB HDMI Dual Display Secure KVM Switch (PSD PP v4.0…
ATEN 4-Port USB HDMI Dual Display Secure KVM Switch (PSD PP v4.0 Compliant), 3840 x 2160 pixels, 4K Ultra HD, 7.2 W, Black
Click or hover over image to enlarge
Part #: CS1144H4-AT-U
Power source
AC
Input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
1 A
Power consumption (typical)
7.2 W
Rack mounting
No
Product colour
Black
Housing material
Metal
Comsys Pacific Price
Save NZ$483.00 off RRP
Out of Stock
Contact us for ETA or alternatives

Four payments of NZ$694.31 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 4-PORT USB HDMI DUAL DISPLAY SECURE KVM SWITCH (PSD PP V4.0 COMPLIANT)
ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1 With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.
Key features
- Number of computers controlled: 4
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: HDMI
- HDMI ports quantity: 8
- USB 2.0 Type-B ports quantity: 4
- Console ports: HDMI, USB A, USB B
- Console USB ports quantity: 2
- Console HDMI ports quantity: 2
- Audio connections: Yes
- Headphone outputs: 4
- RJ-11 ports quantity: 1
- HD type: 4K Ultra HD
- Maximum resolution: 3840 x 2160 pixels
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- Wired remote switch: Yes
- LED indicators: Yes
- Push button: Yes
- Built-in display: No
- Power source: AC
- Input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 1 A
- Power consumption (typical): 7.2 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Width: 335 mm
+ 5 more — see the Specifications tab.
