D-Link DXS-3610-54S Switch

  • Brand: D-Link
  • Category: Switches
  • SKU: DLDXS361054S
  • MPN: DXS-3610-54S

D-Link 48-port 10G SFP+ Layer 3 Stackable 10G Managed Switch

D-Link 48-port 10G SFP+ Layer 3 Stackable 10G Managed Switch, Managed, L3, Full duplex, Rack mounting, 1U

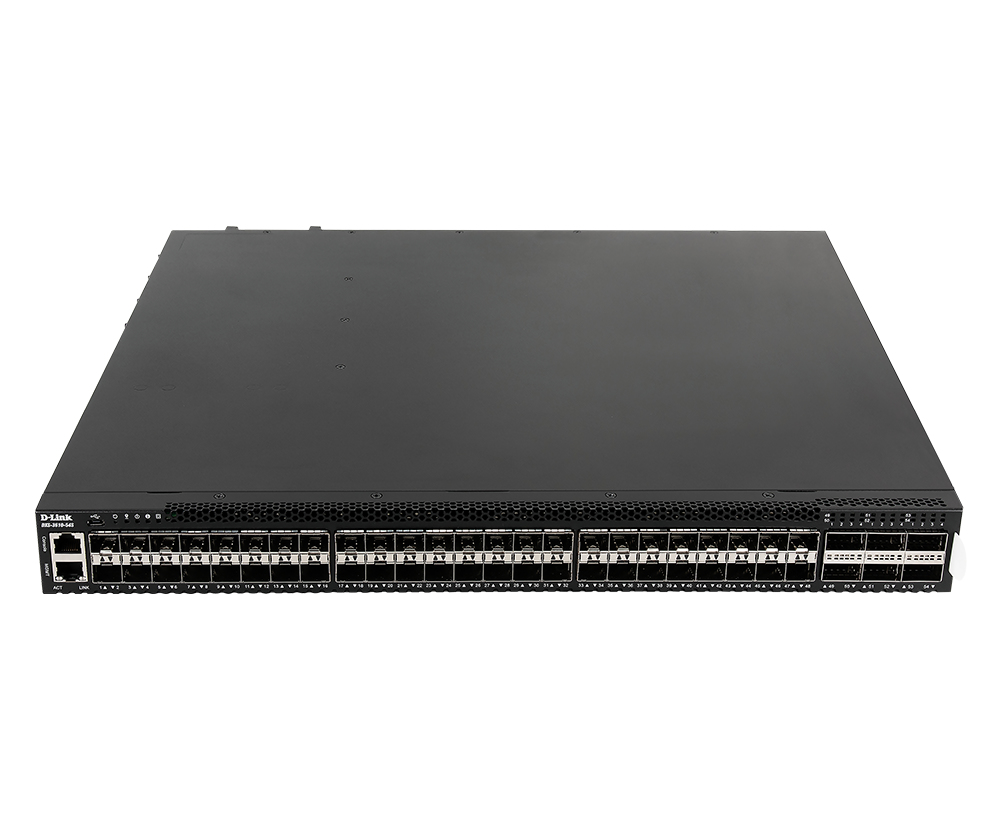

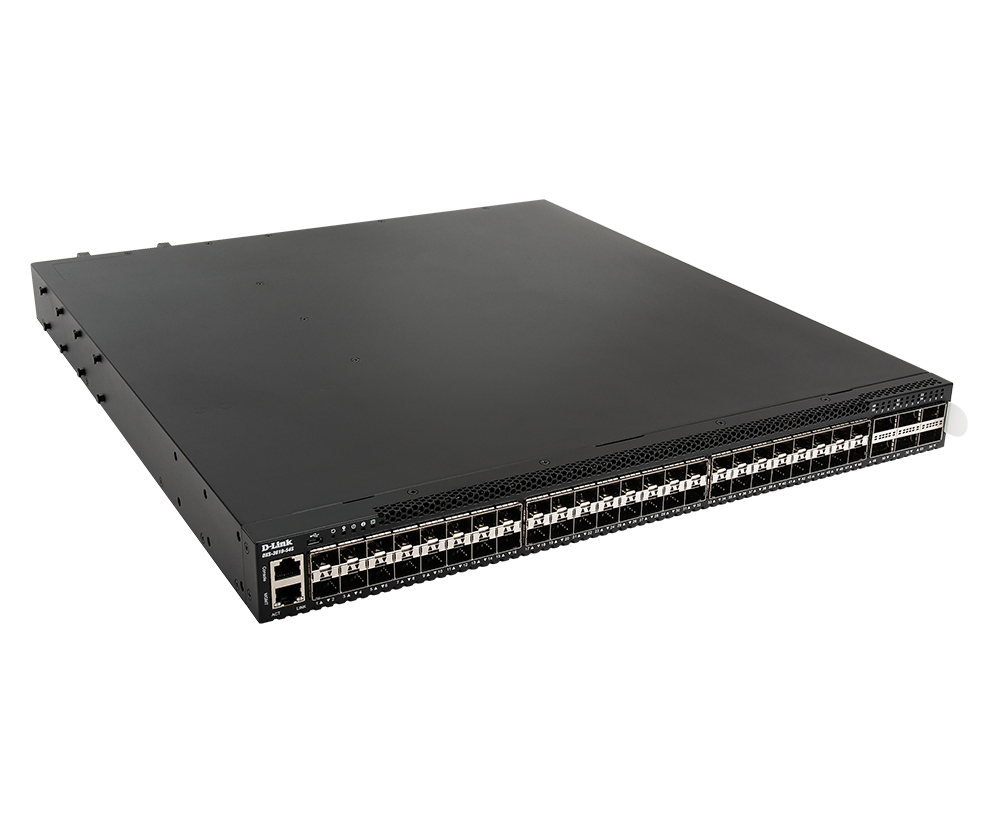

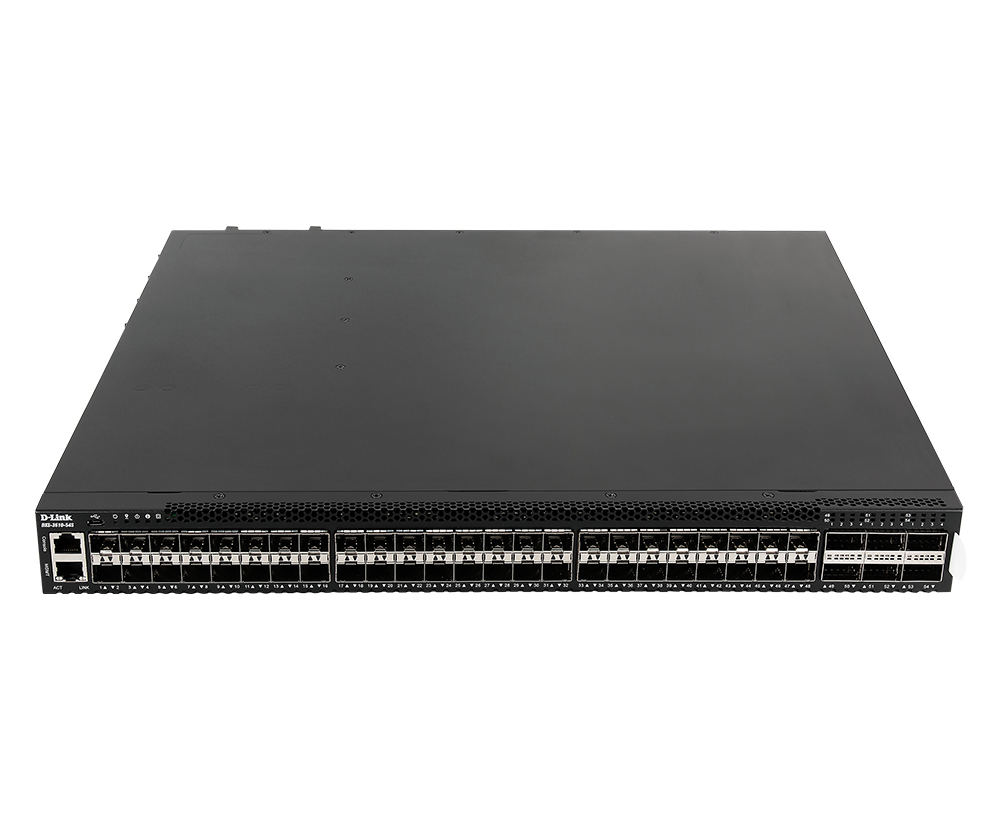

D-Link DXS-3610-54S Switch

Click or hover over image to enlarge

Brand:D-Link
MPN:DLDXS361054S

Part #: DLDXS361054S

Search this part on Google

Power supply included

Yes

Redundant power supply (RPS) support

Yes

AC input voltage

110 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (typical)

120.6 W

Power consumption (max)

320.8 W

Rack mounting

Yes

Stackable

Yes


Returns & Warranty

Comsys Pacific Price

$18,736.99
On Sale

Save $1,436.91 off RRP

Only 5 left in stock

Order soon to avoid backorder

NZ-wide deliveryShips from Auckland · 1–3 days
1
100% NZ Owned & OperatedCall 0800 664 554

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay — pay it in 4 interest-free instalments
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

D-Link DXS-3610-54S Switch

OpenFlow Switching that Stacks Above the Competition
The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.

High Availability
The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.

Hot-Swappable Redundancy

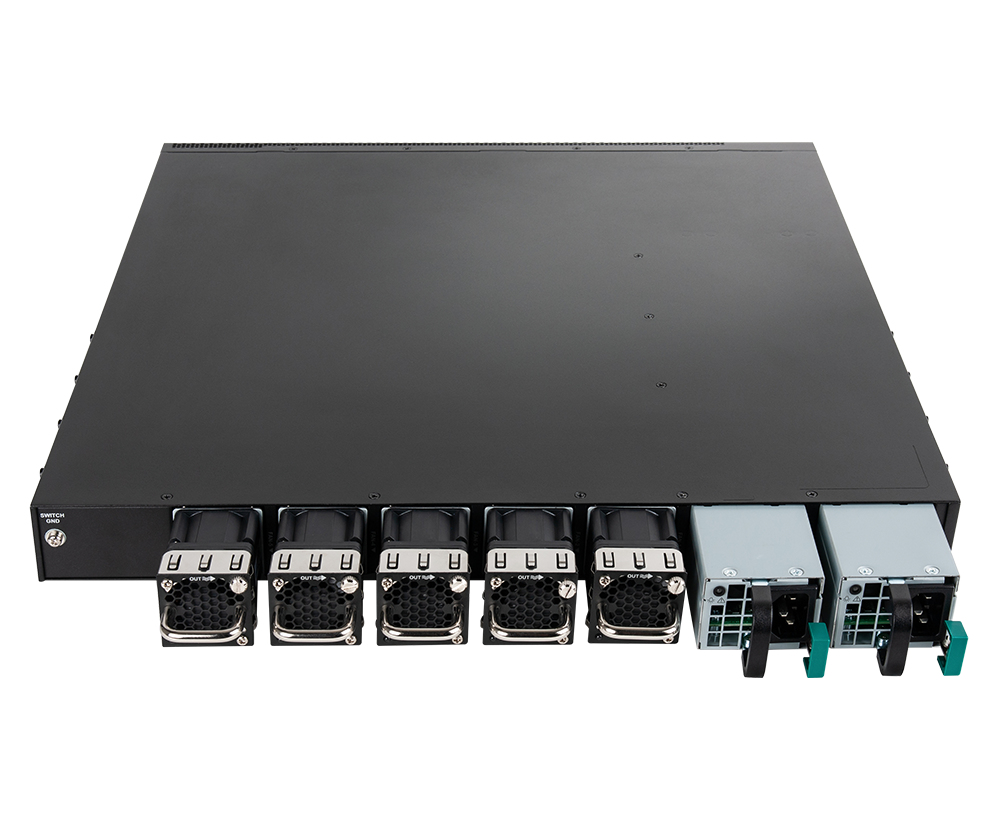

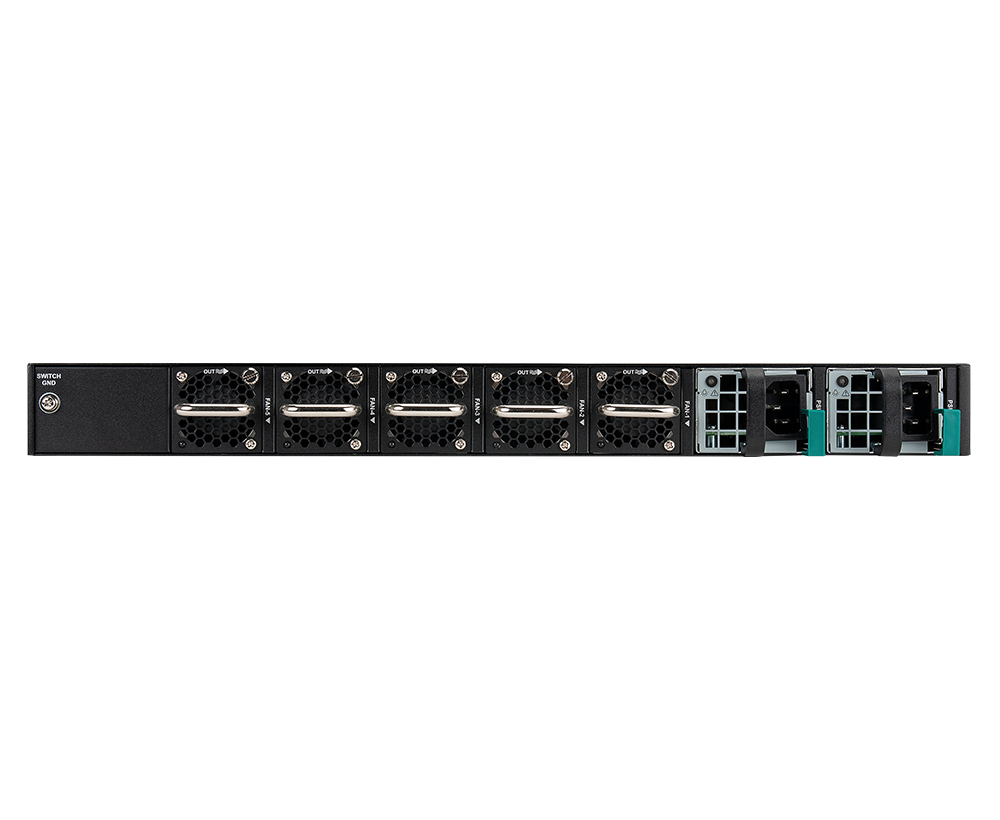

The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.

Robust and Versatile Stacking Capability
Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.

Enhanced Manageability for Peace of Mind
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.

Key features

  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • ARP inspection: Yes
  • Basic switching RJ-45 Ethernet ports type: No
  • SFP+ module slots quantity: 48
  • Console port: RJ-45
  • QSFP28 ports quantity: 6
  • USB 2.0 ports quantity: 1
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x
  • 10G support: Yes
  • Port mirroring: Yes
  • Full duplex: Yes
  • IP routing: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • Head-of-line (HOL) blocking: Yes
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN
  • Switching capacity: 2211.84 Gbit/s
  • Forwarding rate: 1607.04 Mpps
  • MAC address table: 294912 entries
  • Number of queues: 8
  • Static route: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9436
  • Packet buffer memory: 32 MB
  • DHCP features: DHCP client, DHCP server, DHCP snooping

+ 34 more — see the Specifications tab.
