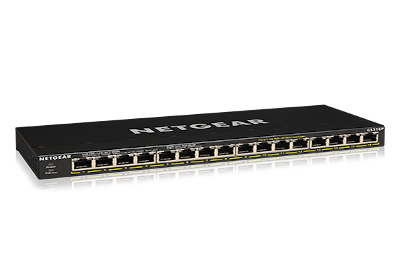

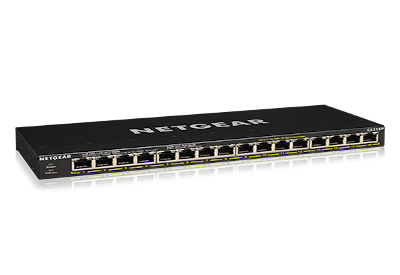

NETGEAR SOHO GS316P-100AJS
NETGEAR SOHO 16-PORT POE+ GIGABIT UNMANAGED SWITCH 115W POE BUDGET GS316P
- Brand: NETGEAR
- Category: Switches
- SKU: 4937351
- MPN: GS316P-100AJS
NETGEAR GS316P-100AJS network switch Unmanaged Gigabit Ethernet…
NETGEAR GS316P-100AJS, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting, Wall mountable
Click or hover over image to enlarge
DC input voltage
54 V
Input current
2.4 A
Power consumption (max)
127.9 W
Rack mounting
Yes
Product colour
Black
Housing material
Metal
LED indicators
Yes
Wall mountable
Yes
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available to Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
NETGEAR SOHO GS316P-100AJS
The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.
NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level
Key features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Switching capacity: 32 Gbit/s
- MAC address table: 4000 entries
- Latency (1 Gbps): 3.7 µs
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet forwarding rate (1 Gbps): 1448000 pps
- Packet buffer memory: 1 MB
- Rack mounting: Yes
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Wall mountable: Yes
- Mean time between failures (MTBF): 2362192 h
- DC input voltage: 54 V
- Input current: 2.4 A
- Power consumption (max): 127.9 W
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 16
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 200 W
+ 9 more — see the Specifications tab.
