QNAP QSW-M3224-24T network switch Managed L3 10G Ethernet…

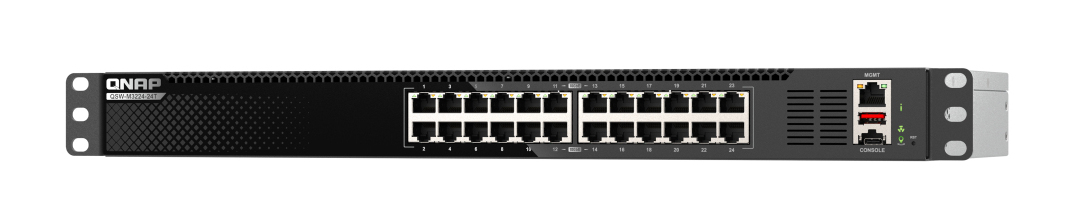

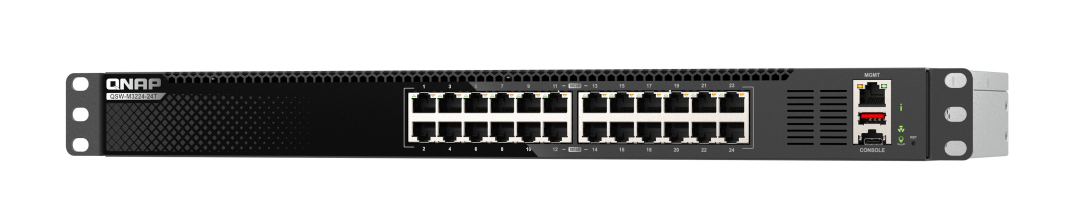

QNAP QSW-M3224-24T, Managed, L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U
Click or hover over image to enlarge
Brand:QNAP
MPN:NS099
Part #: NS099
Power source
AC
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
116.9 W
Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Black, Silver
Comsys Pacific Price
$3,123.99
Clearance
Save NZ$346.00 off RRP
Deal ends in
06Days
08Hrs
23Min
11Sec
Out of Stock
Contact us for ETA or alternatives
NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
Four payments of NZ$898.15 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty: 2 Days
This product includes 2 Days warranty coverage.
QNAP QSW-M3224-24T Management Switch, 24 port of 10gbE RJ45, rackmount design
QSW-M3224-24T
Cost-optimized high-density 1U Rackmount 24-port 10GbE Multi-gigabit L3 Lite managed switch, supporting MC-LAG for realizing IT room High Availability
QSW-M3224-24T is a cost-effective L3 Lite managed switch designed for enterprises. With twenty four 10GbE Multi-Gig ports for low-latency and high-density 10G network applications, QSW-M3224-24T accelerates high-speed storage, video editing, virtualization, AI and AVoIP applications. The QSW-M3224-24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
Scale secure and highly-efficient enterprise network infrastructure with the QNAP L3 Lite switch
Medium to large-scale enterprises often have large and complicated network infrastructure. Upgrading to L3 Lite managed switches not only scales a secure high-speed network infrastructure, but also saves tremendous maintenance and management costs.
24x 10GbE ports for connecting more high-speed network devices
The switching capacity of the QSW-M3224-24T is 480Gbps, guaranteeing the full potential of each port. The QSW-M3224-24T can uplink to switches and servers in server rooms or connect to 10GbE NAS, workstations, AV-over-IP devices, and SNMP-compliant devices to build a flexible high-speed network transmission topology.
Optimize network performance with bandwidth and packet control
The QSW-M3224-24T offers practical bandwidth and packet control features that effectively allocate bandwidth and manage network segmentation. This significantly enhances network performance for administrators.
Powerful security and system functions
The QSW-M3224-24T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.
QSS Pro: Powerful and Smart
The QSW-M3224-24T adopts QNAP Switch System Pro (QSS Pro), which features an easy-to-use Web GUI with Layer 3 Lite and Layer 2 management and value-added functions to simplify network set up and management.
Cost-optimized high-density 1U Rackmount 24-port 10GbE Multi-gigabit L3 Lite managed switch, supporting MC-LAG for realizing IT room High Availability
QSW-M3224-24T is a cost-effective L3 Lite managed switch designed for enterprises. With twenty four 10GbE Multi-Gig ports for low-latency and high-density 10G network applications, QSW-M3224-24T accelerates high-speed storage, video editing, virtualization, AI and AVoIP applications. The QSW-M3224-24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
Scale secure and highly-efficient enterprise network infrastructure with the QNAP L3 Lite switch
Medium to large-scale enterprises often have large and complicated network infrastructure. Upgrading to L3 Lite managed switches not only scales a secure high-speed network infrastructure, but also saves tremendous maintenance and management costs.
24x 10GbE ports for connecting more high-speed network devices
The switching capacity of the QSW-M3224-24T is 480Gbps, guaranteeing the full potential of each port. The QSW-M3224-24T can uplink to switches and servers in server rooms or connect to 10GbE NAS, workstations, AV-over-IP devices, and SNMP-compliant devices to build a flexible high-speed network transmission topology.
Optimize network performance with bandwidth and packet control
The QSW-M3224-24T offers practical bandwidth and packet control features that effectively allocate bandwidth and manage network segmentation. This significantly enhances network performance for administrators.
Powerful security and system functions
The QSW-M3224-24T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.
QSS Pro: Powerful and Smart
The QSW-M3224-24T adopts QNAP Switch System Pro (QSS Pro), which features an easy-to-use Web GUI with Layer 3 Lite and Layer 2 management and value-added functions to simplify network set up and management.
Key features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- System event log: Yes
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- Number of management ports: 1 pc(s)
- Console port: RJ-45
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- 10G support: Yes
- Port mirroring: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Switching capacity: 480 Gbit/s
- Throughput: 240 Gbit/s
- MAC address table: 32000 entries
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- DHCP features: DHCP server
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Loop protection: Yes
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Black, Silver
- Reset button: Yes
- LED indicators: Yes
+ 23 more — see the Specifications tab.
